200W COB PAR LIGHT
Model：EC-PAR200

1 x 200W COB white LED (standard 3200K, optional 5000K)

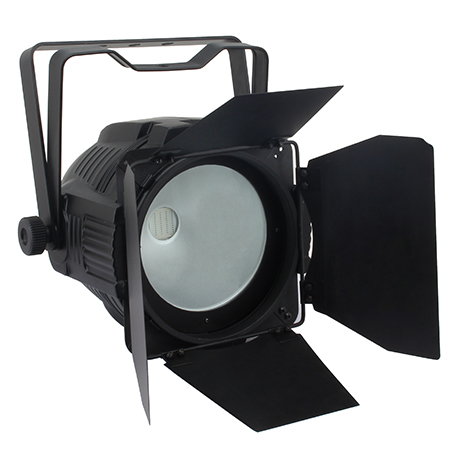

With barn door, the light range is more accurate.

Latest linear dimming technology, no flicker output

Double hangers design can be used on the ground

DMX control




Photometrics
Light Source:

200W warm white LED

Beam Angle:

60°

Key Features
Color Mixing:

warm white

Strobe: 0-25 Hz
Dimming:

0-100% linear dimming

Control
Protocol: DMX512
DMX Channels:

3

Built-in Programs:
 Yes
Display:  4 Digital LED display figures
Power
Mains: 100 - 240 VAC, 50/60 Hz
Consumption:

200W

I/O

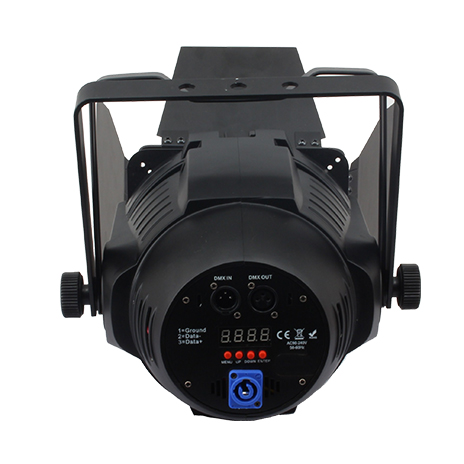

Power connections: PowerCon In/Out
Data connections: XLR In/Out for DMX
Housing
Material: Casting Aluminum
IP rating: IP20
Thermal
Cooling: Fan Cooling
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 66°C
Physical
Dimensions:

300 x 230 x 320 mm

Weight: 3.7 KG
Misc / Options
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case: Not included
