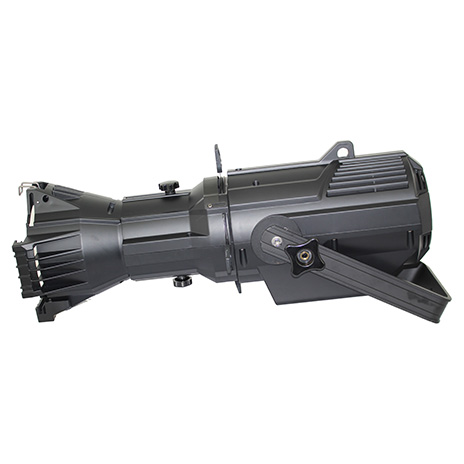

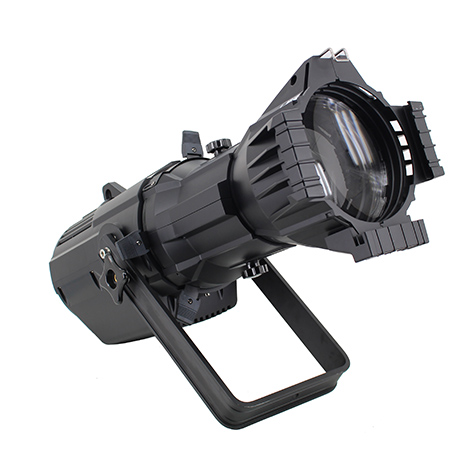

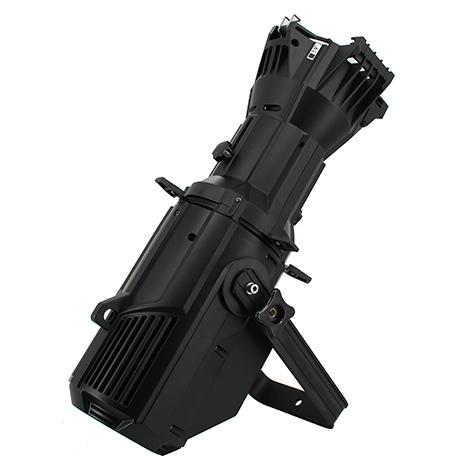

200W COB LED PROFILE LIGHT
Model：EC-TP200

Efficient optical lens;

200W LED, 3000K color temperature, excellent performance

Perfect dimming, consistent color temperature throughout

No flicker output, silent operation, low maintenance design

Optional optical lens: 14 °, 19 °,  26 °, 36 °, 50 °

DMX control



Photometrics
Light Source:

200W warm white/cool white LED

Beam Angle:

19°(26°/36°/50° optional）

Key Features
Color Mixing:

warm white/cool white

Strobe: 0-25 Hz
Dimming:

0-100% linear dimming

Control
Protocol: DMX512
DMX Channels:

3

Built-in Programs:
 Yes

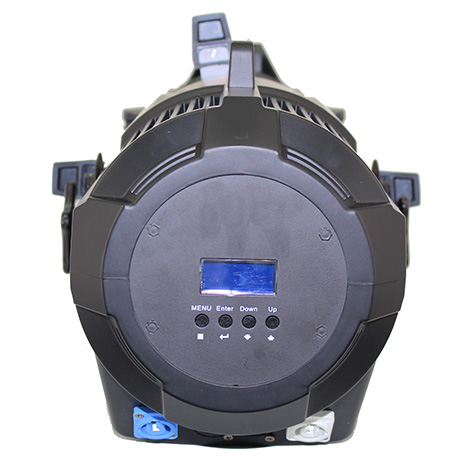

Display:  4 Digital LED display figures
Power
Mains: 100 - 240 VAC, 50/60 Hz
Consumption:

200W

I/O
Power connections: PowerCon In/Out
Data connections: XLR In/Out for DMX
Housing
Material: Plastic
IP rating: IP20
Thermal
Cooling: fan cooling
Max. Ambient: 40°C
Min. Ambient: 0°C
Max. Housing: 66°C
Physical
Dimensions:

700 x 260 x 250 mm

Weight: 6.4 KG
Misc / Options
Power Cord: Included (PowerCon)
Mounting Clamp: Not included
Touring Case: Not included
