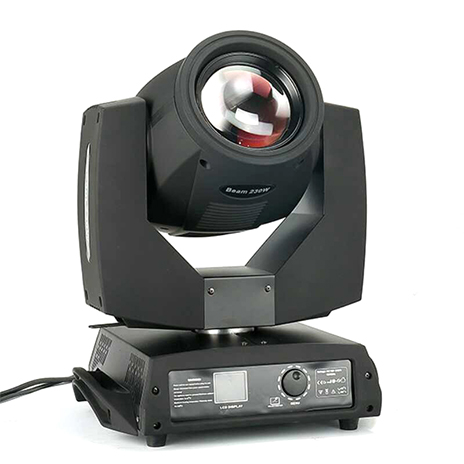

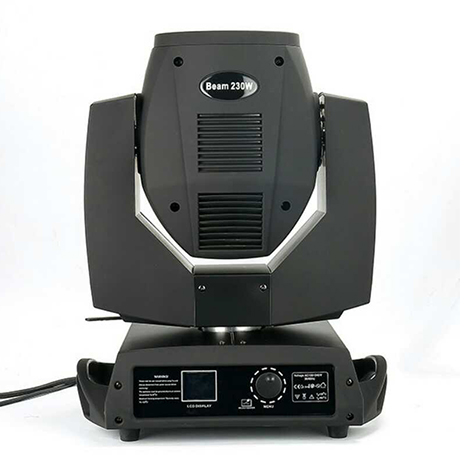

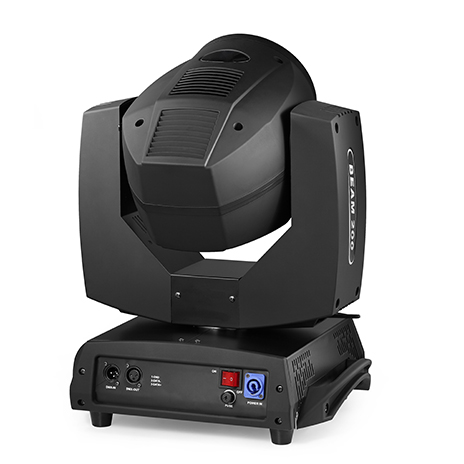

230W MOVING HEAD BEAM LIGHT

Model：EC-BEAM230

Advanced coating optical system has higher efficiency

The beam is compact, sharp and strong

Multiple patterns are optional

Built-in rich color pattern, rotating gobo pattern and 16 rotating prism

Fast, ultra-static XY rotation

Photometrics
Light Source:	YODN 230W/OSRAM 230W
POWER
Mains	100-240 VAC, 50/60Hz
Consumption	450W
Power connections:	PowerCon in/out
KEY FEATURES
Pan movement:	540°
Tilt movement	270°
Strobe:	0-30Hz
Dimming:	4 dimming curve modes
CONTROL
Protocol:	DMX512
DMX channels:	16CH
Data connections:	3-pin & 5-pin XLR in/out
Display:	LCD
Housing
Material:	High strength temperature engineering plastic shell
IP rating:	IP20
Thermal
Cooling:	fan cooling
Max. Ambient:	40°C
Min. Ambient:	0°C
Max. Housing:	66°C
Physical
Dimensions:	330 x 390 x 490 mm
Weight:	17 KG
Misc / Options
Power Cord:	Included (PowerCon)
Mounting Clamp:	Not included
Touring Case:	Not included
