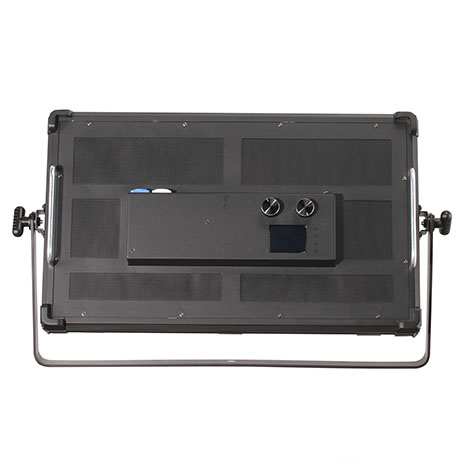

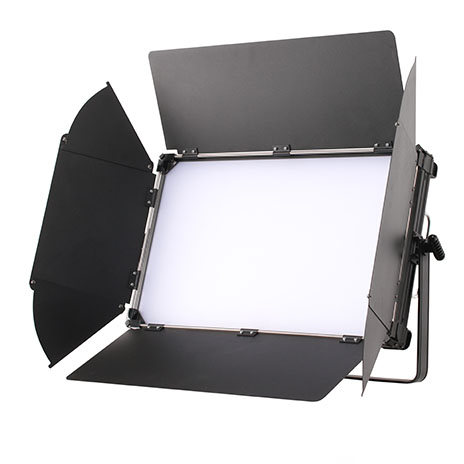

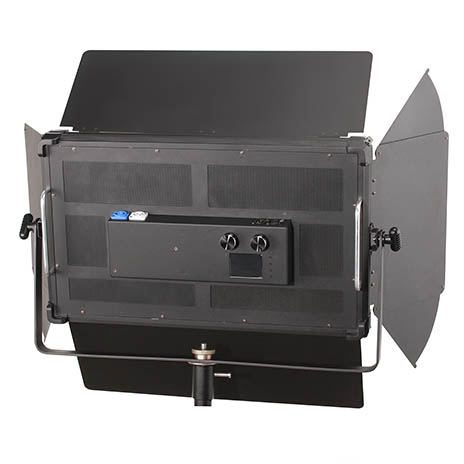

| 200W WW+CW LED soft panel light |
| Model：EC-PL200H |
 |
|
Simple operation, user-friendly design; Three kinds of dimming methods, including
built-in key dimming, knob dimming and console dimming; No flicker, shake dynamic
phenomenon, stable performance, with temperature control detection and protection function.
Advanced cooling system design, natural cooling, super quiet can adapt to photography,
photography, television and other lighting requirements are very strict occasions.
|
|
|
|
| Photometrics
|
| Light Source:
|
2024PCS (1012pcs x Warm white 2835 SMD + 1024pcs x Cool white 2835 SMD LED)
|
Beam angle：
|
135°
|
| Key Features
|
|
CRI:
|
≥95
|
| Color Mixing:
|
CW+WW
|
CCT:
|
3200 – 6000K adjustable
|
| Strobe:
|
0-25 Hz
|
| Dimming:
|
0-100% linear dimming
|
| Control
|
| Control mode：
|
Master/Slave, Auto, DMX512, RDM
|
| DMX Channels:
|
2CHS
|
Built-in Programs:
|
Yes
|
| Display:
|
LED Touch display
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
200W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
A3+AL
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
Convection
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
727x 433 x 118.5 mm
|
| Weight:
|
8.6 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
