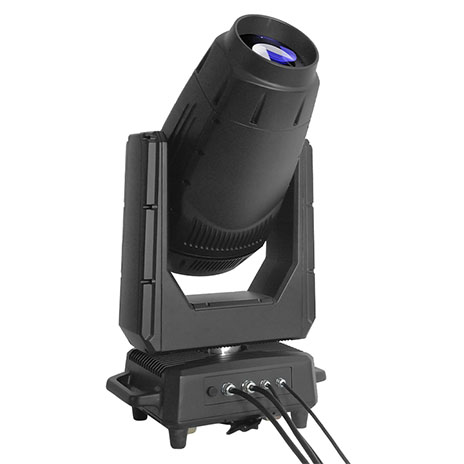

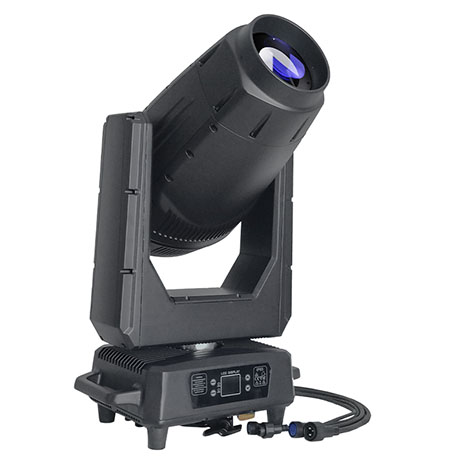

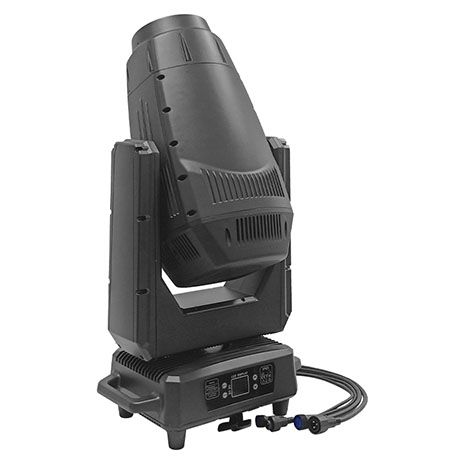

| 380W BWS 3 in 1 Moving Head Light |
| Model：EC-BSW380 |
 |
1. Light weight and small size, only 24KG.
2. High protection level: IP66, not afraid of heavy rain.
3. Fast heat dissipation: high heat dissipation performance, extending the life of the lamp.
4. Strong corrosion resistance: suitable for various environments such as seaside and desert.
|
|
|
|
| Photometrics
|
| Light Source:
|
380WLL Philips long life
|
|
Scanning:
|
horizontal 540°, vertical 270°, precise positioning of motor magnetic
coding
|
|
Color wheel:
|
One color wheel, 11 colors plus white light
|
|
Gobo plate 1:
|
a fixed gobo plate, 11 gobos
|
|
Gobo plate 2:
|
a rotatable gobo plate, 8 gobos, customizable
|
|
Effect plate:
|
can flow water back and forth
|
|
Prism:
|
an 8-prism, a 6-row mirror, can be superimposed, can be Independent rotating
|
|
Strobe:
|
supports mechanical strobe and adjustable speed strobe effects, supports
strobe macro function, and the strobe frequency is 15 times/second
|
|
Lens:
|
High-precision optical lens, lens group optical system, electric focus
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
600W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Color temperature:
|
7800K
|
|
Zoom range:
|
2-40 degrees
|
|
Light adjustment:
|
0-100% linear adjustment
|
|
Focus adjustment:
|
linear electronic focus adjustment
|
|
CTO:
|
3200-7500K
|
|
CONTROL
|
|
Protocol:
|
DMX512
|
|
DMX channels:
|
18CH/22CH
|
|
Control mode:
|
|
| Data connections:
|
3-pin XLR in/out
|
|
Display:
|
Touch control interface with RDM, which can remotely control the bulb
switch function and display fan speed and bulb usage time
|
|
|
| Housing
|
| Material:
|
full die-cast magnesium alloy material
|
| IP rating:
|
IP66
|
| Thermal
|
|
Heat dissipation method:
|
air-cooled die-cast magnesium alloy + radiator
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
415*240*766mm
|
Net weight:
|
24KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
