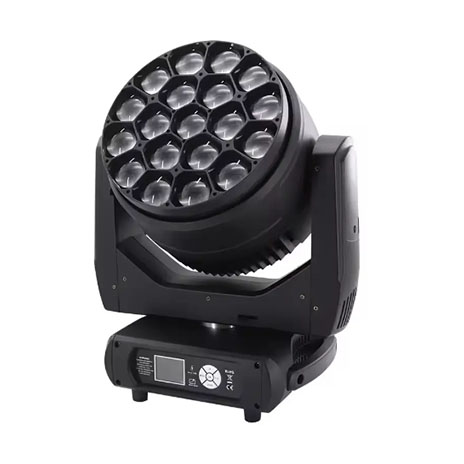

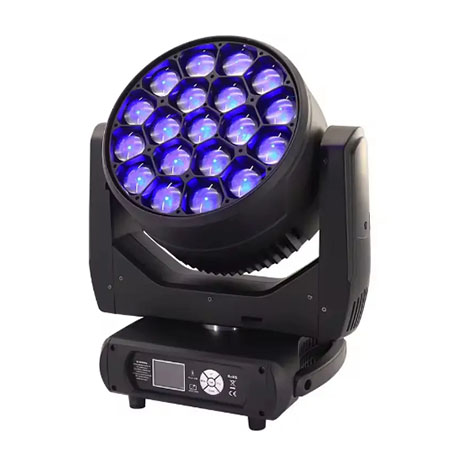

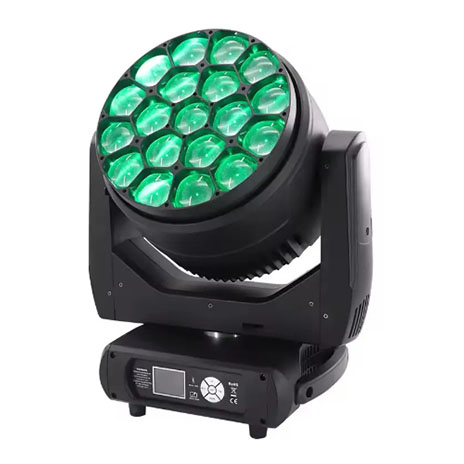

| 19PCSx40W ZOOM BEE EYE LED MOVING HEAD LIGHT |
| Model：EC-BE1940 |
 |
1. 40W LED RGBW 4 in 1 with high brightness and excelent color mixing
2. Each LED can be controlled individually
3. Shape control model has many nice built-in effect which makes control much easier
4. The lens can be rotated infinitely in both directions
|
|
|
|
| Photometrics
|
| Light Source:
|
19x40W RGBW 4-in-1 LED
|
Zoom Angle:
|
4°-60°
|
|
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
800W
|
|

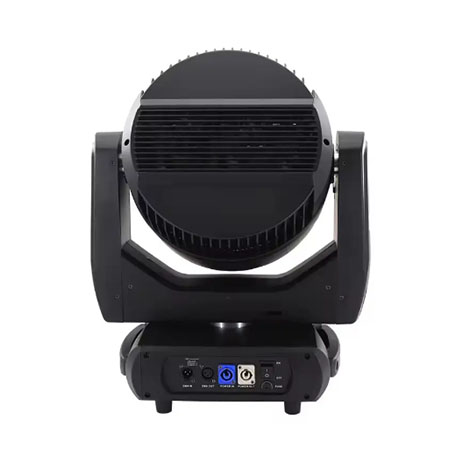

Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
270°
|
|
Effects:
|
Stain, beam, honeycomb, vortex, kaleidoscope
|
|
Stroboscopic:
|
1-20 times/second
|
|
Dimming:
|
0--100% linear dimming
|
|
CONTROL
|
|
Control mode:
|
auto-running/sound-actived/master-slave /DMX512
|
|
DMX channels:
|
23/21/35/78/92/97/99 CH
|
| Connection method:
|
DMX512 input and output / power input and output
|
|
|
| Housing
|
| Material:
|
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
|
N.W.:
|
15KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
