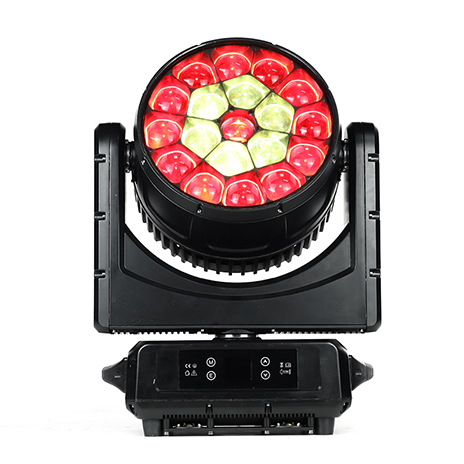

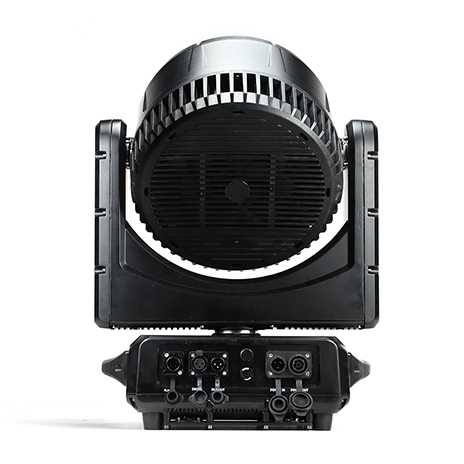

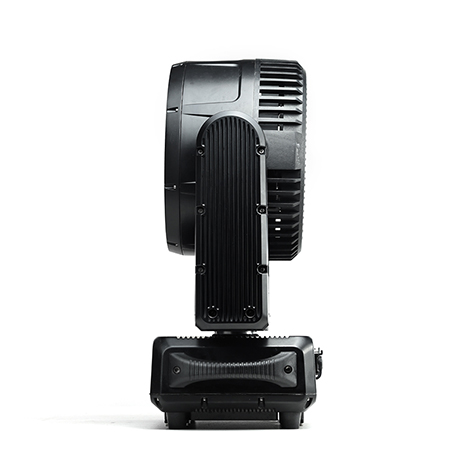

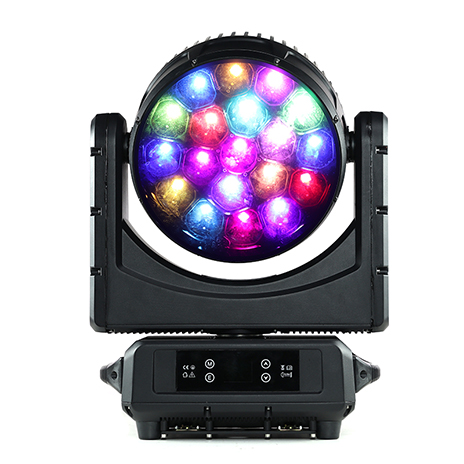

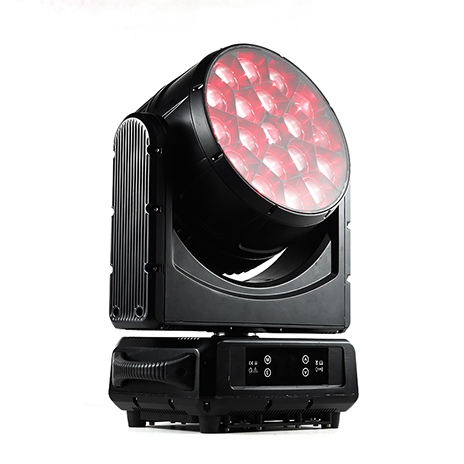

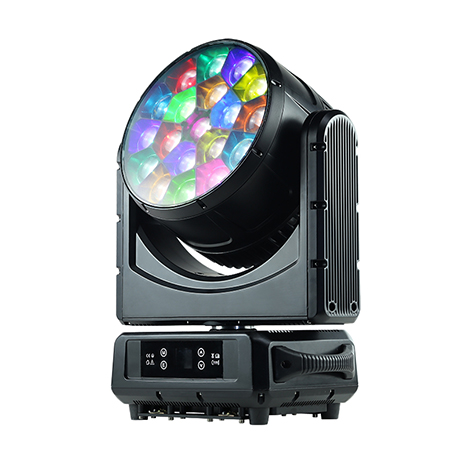

| 19x40W waterproof LED zoom wash moving head light |
| Model：EC-WM1940 |
 |
1. Equipped with dyeing, beams, graphics and special effects
2. The front mirror plate can rotate in two directions at fast/slow speeds
3. With classic effects such as whirlpool, kaleidoscope, and slim waist
4. Built-in rich effect program
|
|
|
|
| Photometrics
|
| Light Source:
|
19pcs 40W 4-IN-1 LEDs (R, G, B, W)
|
Zoom Angle:
|
5-45°
|
LED Feature:
|
Individual LED control of each color
|
|
POWER
|
|
Mains
|
100-240 VAC, 50/60Hz
|
|
Consumption
|
880W
|
|
Power connections:
|
PowerCon in/out
|
|
KEY FEATURES
|
|
Pan movement:
|
540°
|
|
Tilt movement:
|
205°
|
Full bright color rendering index:
|
Ra=73.5
|
|
Strobe:
|
1-25Hz
|
Single white color temperature:
|
7800K
|
|
Dimming:
|
0-100% smoothly dimmer
|
|
CONTROL
|
|
Control mode:
|
DMX512,master-slave,Sound,Auto
|
|
DMX channels:
|
Basic Engine:Standard 21CH/22CH,
Shapes 35CH/36CH
Pixel Engine: RGB 22+57(79)CH,
RGBW 36+76(112)CH
|
| Connection method:
|
DMX512 input and output / power input and output
|
|
|
| Housing
|
| Material:
|
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
fan cooling
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
408x302.1x490.1mm
|
N.W.:
|
22.63kgs
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
