Power connection IP65 powercon input/output or SEETRONIC IP65 electrical waterproof connector input/output
Data connection IP65 DMX signal line input/output or SEETRONIC IP65 signal connector input/output
12*10W(4in1)/12*12W(5in1)/12*15W(6in1) optional
Photometrics
Light Source:
12*10W(4in1)/12*12W(5in1)/12*15W(6in1)high power LED
Beam Angle:
25°
Key Features
Color Mixing:
4 in 1 RGBW/5 in 1 RGBWA/6 in 1 RGBWA-UV
Strobe:
0-30Hz
Dimming:
0-100% linear dimming
Control
Protocol:
DMX512
DMX Channels:
4/6/8 channels
Built-in Programs:
Yes
Display:
OLED function menu with 4 touch buttons
Power
Mains:
100 - 240 VAC, 50/60 Hz
Consumption:
120W(4in1)/150W(5in1)/180W(6in1)

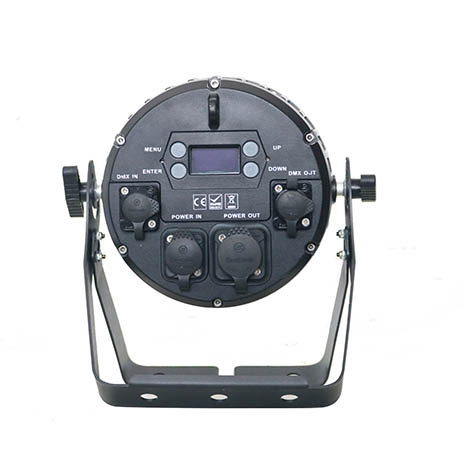

I/O
Power connections:
Power connection IP65 powercon input/output or SEETRONIC IP65 electrical waterproof connector input/output
Data connections:
Data connection IP65 DMX signal line input/output or SEETRONIC IP65 signal connector input/output
