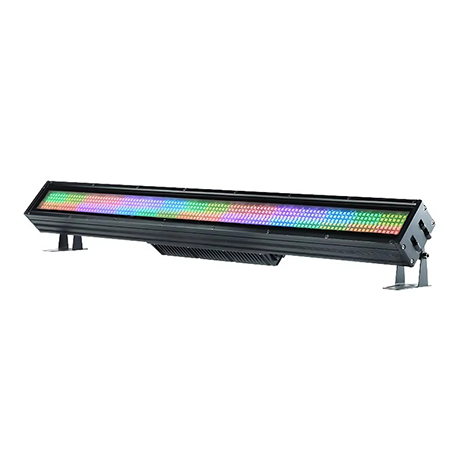

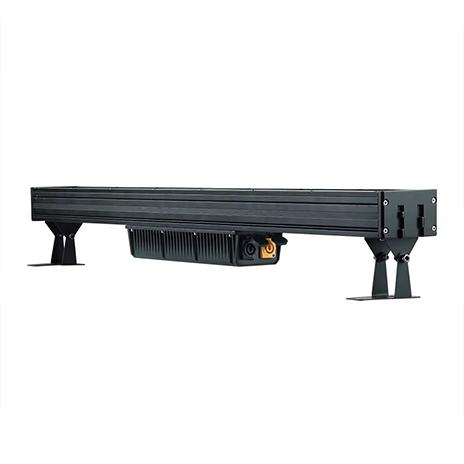

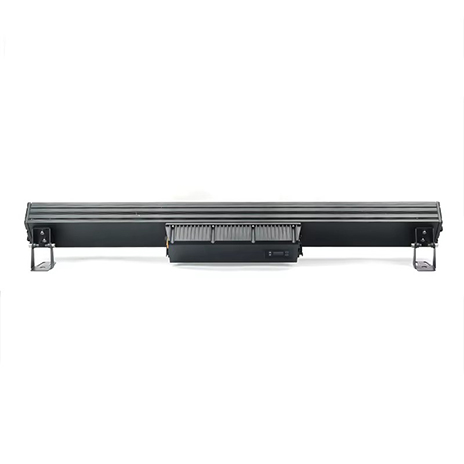

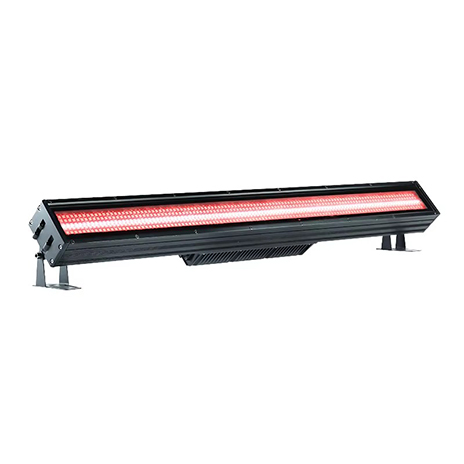

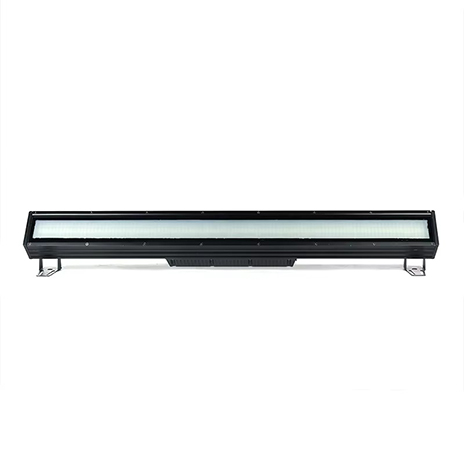

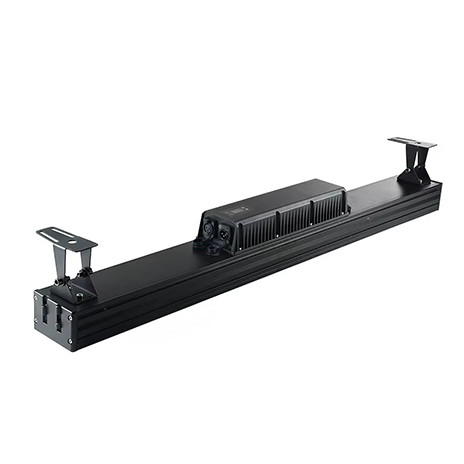

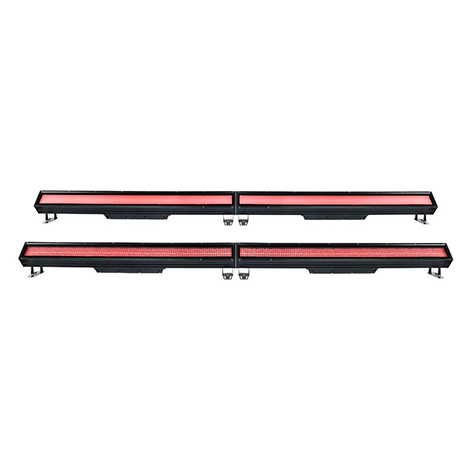

| 500W LED bar multi-function strobe light |
| Model：EC-ST500 |
 |
|
This high power strobe bar light has two options,cold white strobe and warm white strobe. Its excellent wash and stroboscopic effects make it highly suitable for medium and large concerts, studios, DJ performances, night clubs, wedding parties, etc.
|
|
|
|
| Photometrics
|
| Light Source:
|
672(5050)×0.5W RGB + 112×4W CREE cold white/warm white LED
|
| Lens angle:
|
120 °
|
| Key Features
|
Color mixing:
|
RGB+cold white/warm white
|
| Strobe:
|
1-25/S high-speed electronic stroboscopic
|
| Dimmer:
|
0~100% smooth linear dimming
|
| Control
|
| Control Mode:
|
DMX,Auto,Master/Slave,sound active mode,with RDM function
|
| DMX Channels:
|
6/9/13/16/18/32/32A/ 38/43/64/112/127 CH
|
Built-in Programs:
|
Yes
|
|
|
|
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
700W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
Fan heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
997*101*149.26mm
|
| Weight:
|
6.1KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
