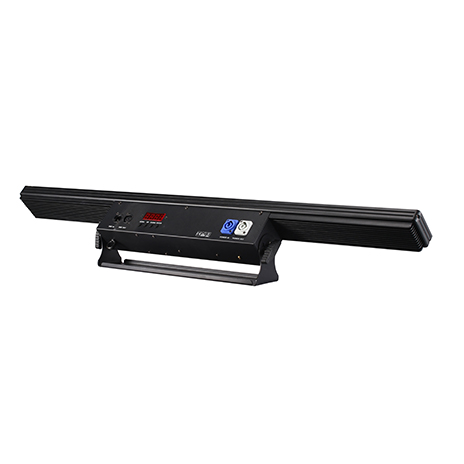

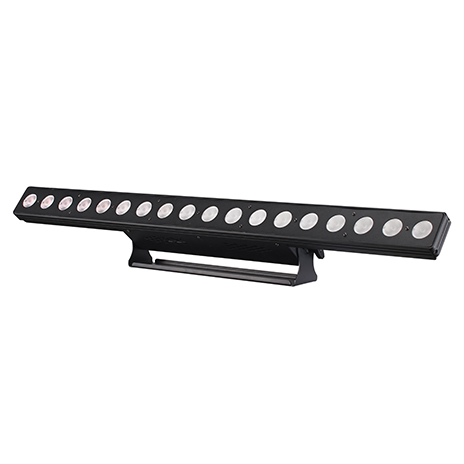

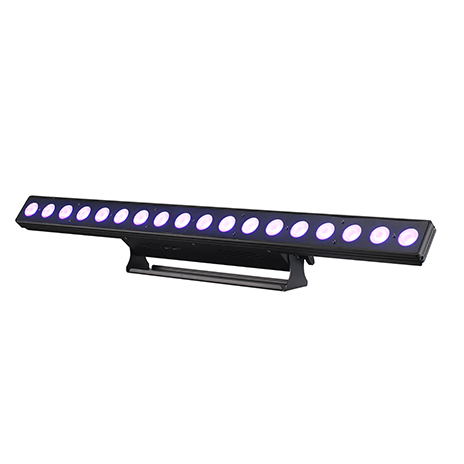

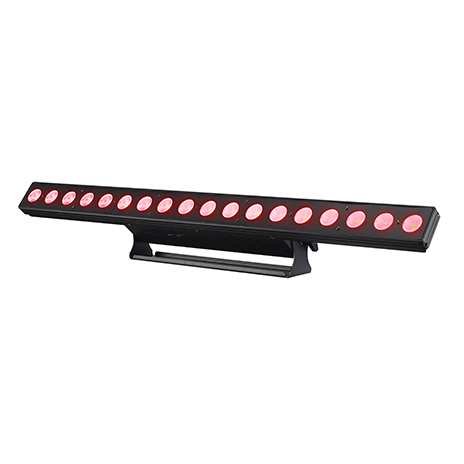

| 18x10W RGBW 4 in 1 LED bar light |
| Model：EC-W1018 |
 |
This product is designed for indoor use. Suitable applications include wash or effect lighting for architectural, stage or nightclub applications. It can also be installed for use in signage and advertising using the dynamic functions available with DMX512 control. Direct input of DMX512 signal allows the units to be controlled from any DMX512 controller. This product can be operated as a single unit or in multiple units for large applications.
|
|
|
|
| Photometrics
|
| Light Source:
|
18X10W RGBW 4in1 ultra bright LED
|
| Lens angle:
|
25°
|
| Key Features
|
Color mixing:
|
RGBW color mixing, colorful infinite change
|
| Strobe:
|
0-30Hz
|
| Dimmer:
|
0-100% linear dimmer
|
| Control
|
| Control Mode:
|
DMX 512, Auto mode, Master/Slave Mode
|
| DMX Channels:
|
4/11/26/79channels
|
Built-in Programs:
|
Yes
|
| Display:
|
LED function menu with 4 buttons
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
180W
|
| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP20
|
| Thermal
|
| Cooling:
|
natural heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
1000×74×151mm
|
| Weight:
|
4.6 KGS
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
