| 6*18W 6in1 battery waterproof par light |
| Model：EC-WP615 |
 |
|
The waterproof LED par light features 6x20W RGBWAUV 6in1 LEDs with an IP65 rating, ensuring durability and vibrant lighting for outdoor stage use. It supports multiple control modes including DMX512 and wireless DMX, and offers a long working lifetime of 50,000 hours.
|
|
|
|
| Photometrics
|
| Light Source:
|
6* 20W high brightness LED(6 in 1)
|
| Lens angle:
|
10°/20° optional
|
| Key Features
|
Color mixing:
|
RGBAW+ UV 6in1
|
Color temperature:
|
2700-10000K adjustable (300K is a unit)
|
| Strobe:
|
0-30Hz
|
| Dimmer:
|
0-100% linear dimmer
|
| Control
|
| Control Mode:
|
DMX512, master-slave control, self-propelled, 2.4G wireless DMX512
Infrared remote control, WiFi mobile application control (supports Apple and Android)
|
| DMX Channels:
|
2CH/6CH/8CH/11CH
|
Built-in Programs:
|
Yes
|
| Time mode:
|
2 hours/4 hours/6 hours /8hour mode optional
|
|
Display:
|
OLED touch screen, convenient and fast, CCT menu key
|
Battery usage time:
|
RGBWAUV fully lit for 3 hours, monochromatic for 15 hours. Self mode for 8 hours
|
|
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
120W
|

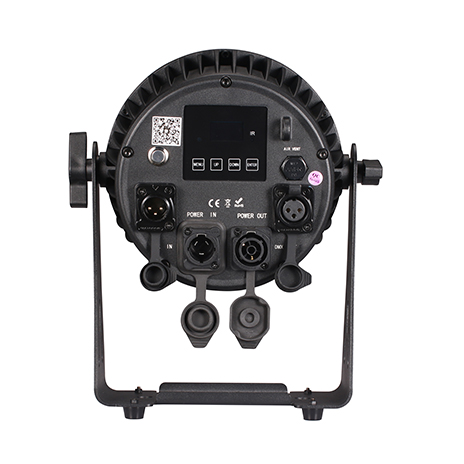

| I/O
|
| Power connections:
|
PowerCon In/Out
|
| Data connections:
|
XLR In/Out for DMX
|
| Housing
|
| Material:
|
Aluminum
|
| IP rating:
|
IP65
|
| Thermal
|
| Cooling:
|
natural heat dissipation
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
190*180*240mm
|
| Weight:
|
4.1KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
