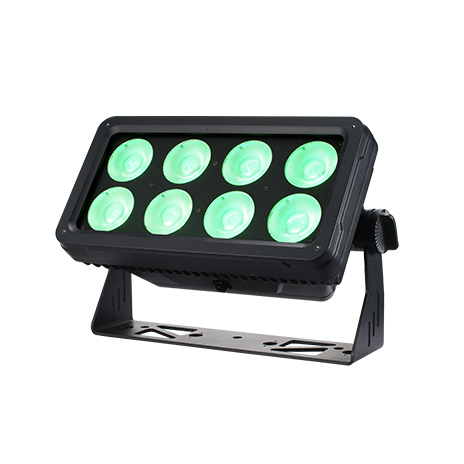

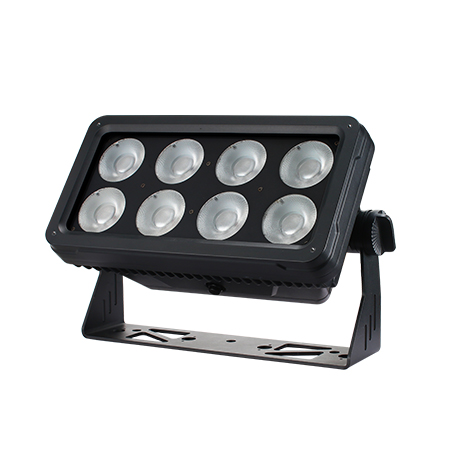

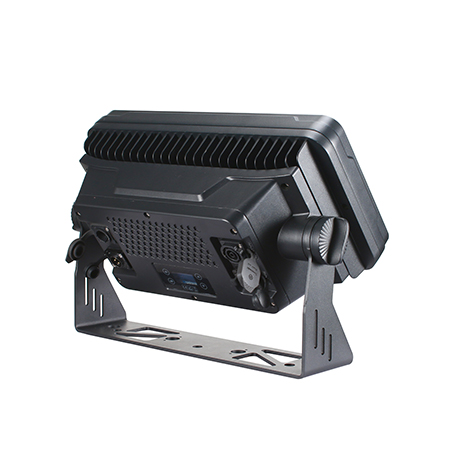

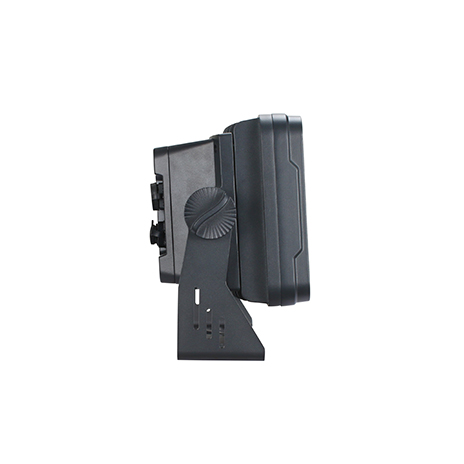

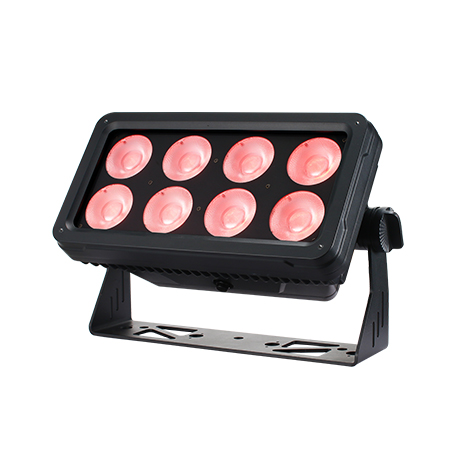

| 8x40W RGBW 4in1 LED outdoor wash light |
| Model：EC-W840 |
 |
|
Waterproof sealing design, high color purity, special optical design for more uniform light effect, waterproof grade IP65. Suitable for various indoor and outdoor performances, environmental art lighting, outdoor lighting and other dyeg and lighting effects.
|
|
|
|
| Photometrics
|
| Light Source:
|
8*40W high power LED (RGBW 4in1)
|
Lens Angle :
|
25° (15°/45°/60° optional)
|
| Key Features
|
Optional Spare parts：
|

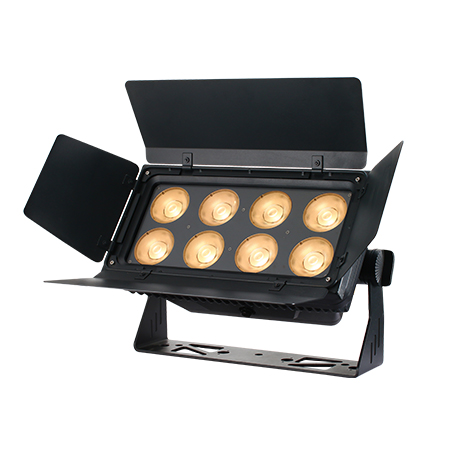

Magnet filter, Barndoor
|
| Strobe:
|
0-30Hz
|
Color mixing：
|
RGBW colorful and infinite changes
|
| Dimming:
|
0-100% linear dimming
|
Effect：
|
4 Segments control, with various running effects
|
| Control
|
| Control mode:
|
DMX512, Master-slave mode, Auto mode, RDM
|
| DMX Channels:
|
5/8/20 channels
|
Built-in Programs:
|
Yes
|
| Display:
|
OLED high-definition display, touch buttons
|
| Power
|
| Mains:
|
100 - 240 VAC, 50/60 Hz
|
| Consumption:
|
320W
|
| I/O
|
| Power connections:
|
IP65 Seetronic Power IN+OUT connectors
|
| Data connections:
|
IP65 Seetronic DMX IN+OUT connectors
|
| Housing
|
| Material:
|
Die-cast aluminum material
|
| IP rating:
|
IP65, outdoor, with pressure-equalizing M12 exhaust valve
|
| Thermal
|
| Cooling:
|
intelligent temperature control, 2 silent waterproof fans, intelligent fan speed control
|
| Max. Ambient:
|
40°C
|
| Min. Ambient:
|
0°C
|
| Max. Housing:
|
66°C
|
| Physical
|
| Dimensions:
|
437×196×248 mm
|
| Weight:
|
7.5 KG
|
| Misc / Options
|
| Power Cord:
|
Included (PowerCon)
|
| Mounting Clamp:
|
Not included
|
| Touring Case:
|
Not included
|
|
